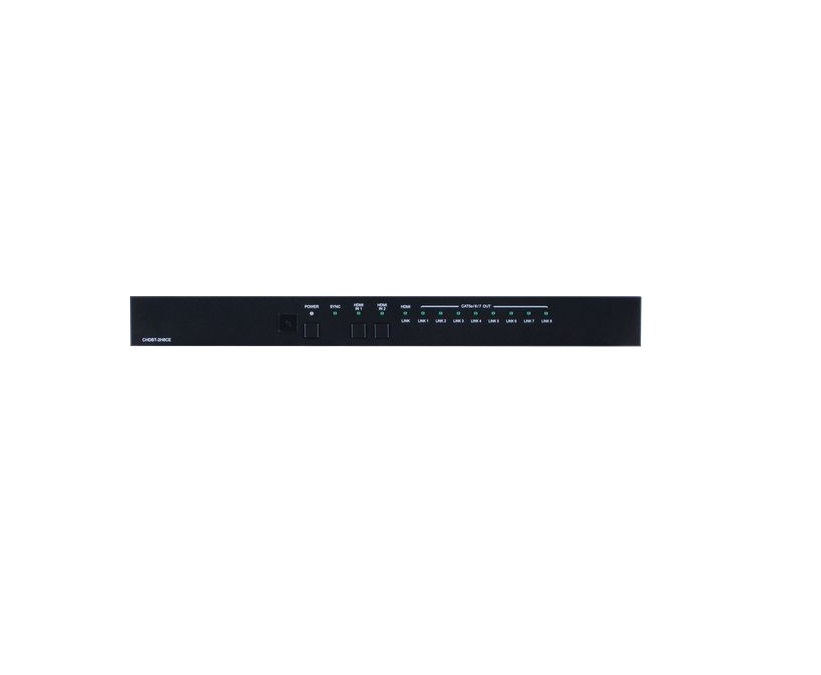

2x9 HDMI/AUDIO TO CAT5e/6/7 SPLITTER

This 4K2K capable HDBaseT™ HDMI to HDMI and CAT5e/6/7 Transmitter supports the transmission of video (resolutions up to 1080p/4K2K) and multi-channel digital audio to eight remote HDBaseT CAT5e/6/7 outputs, plus an additional HDMI output which can be connected to a local HDMI display for monitoring.
The HDBaseT outputs can be connected to compatible Receivers for distances up to 100 metres over a single CAT5e/6/7 cable (for each output) and can transmit High-definition Video and Audio, bi-directional IR control, RS-232 pass-through, Power over Ethernet (PoE) that can power receivers and LAN serving that allows all connected devices to share a network. For additional flexibility, there is an Audio De-Embedding function which allows audio integration into a wider AV system or direct connection to an AV Receiver. Audio outputs are via a digital optical connection or an analogue stereo output (2 RCA).

HDMI with 3D and 4K2K supported, HDCP and DVI compliant
Simultaneous display of the selected source through the HDBaseT and HDMI outputs
Features one HDMI and eight HDBaseT outputs
Supports data rates from 250Mbps up to 3Gbps
Supports a wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840x2160@24/25/30Hz and 4096x2160@24Hz)
Supports High-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32kHz to 192kHz sample rate)
Supports distances of up to 100 metres over industry-standard CAT5e/6/7 cables
Supports Ethernet transmission rates up to 100Mbps
Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
Supports HDMI 3D features for compatible sources and displays
Supports Power over Cable (POC) with compatible Receiver units
Supports bi-directional IR pass-through from the source and display locations
