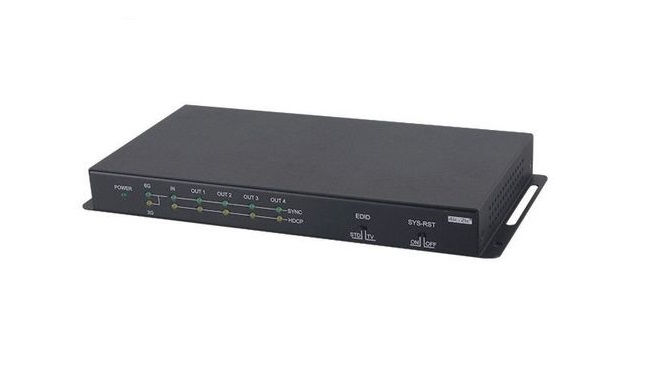

HDMI SPLITTER 4K60 18GBPS WITH AUTOMATIC DOWNSCALING - CYPRESS
WITH AUTOMATIC DOWN-SCALING IF A DISPLAY CANNOT SUPPORT THE SOURCE'S 4K RESOLUTION/TIMING

HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the HDMI outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply colour space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
2x HDMI outputs in CPLUS-V2T or 4x HDMI outputs in CPLUS-V4T, 1x HDMI input
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Supports pass-through of LPCM 7.1, Bitstream and advanced HD
Bitstream audio formats
Automatic 4K to 1080p down-scaling and colour space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
Independent HDCP management engine for each output ensures stable HDCP performance
Simple to use EDID management options
Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays
Controllable via front-panel switches
